Send Emails from Flow without a Service Account

itweedie published in Azure Power Platform Power Automate

2025-02-10 2217 words 11 minutes

Want to send emails from Power Automate but can’t or don’t want to use a service account? Tired of dealing with Conditional Access Policies, password expirations, and frequent logins? Do you want a simple, secure, and scalable way to send emails without constantly re-confirming security information?

Good news! In this guide, I’ll show you how to send emails directly from Microsoft Exchange using only an App Registration. No service accounts, no password headaches. I’ll also share a Custom Connector to make it even easier, plus step-by-step instructions to:

Create and configure the App Registration
Assign API permissions
Restrict sending access to specific mailboxes
Use Power Automate with the custom connector
Send emails using app registration

Create the App Registration

For this section you will need the help of a Global Administrator

Step 1 - Log in to Entra

By default most users will have the ability to go to https://entra.microsoft.com and log in with your user account.

Step 2 - Create the app registration

Next we are going to create an application registration so our Power Automate flow can talk directly to Exchange Online.

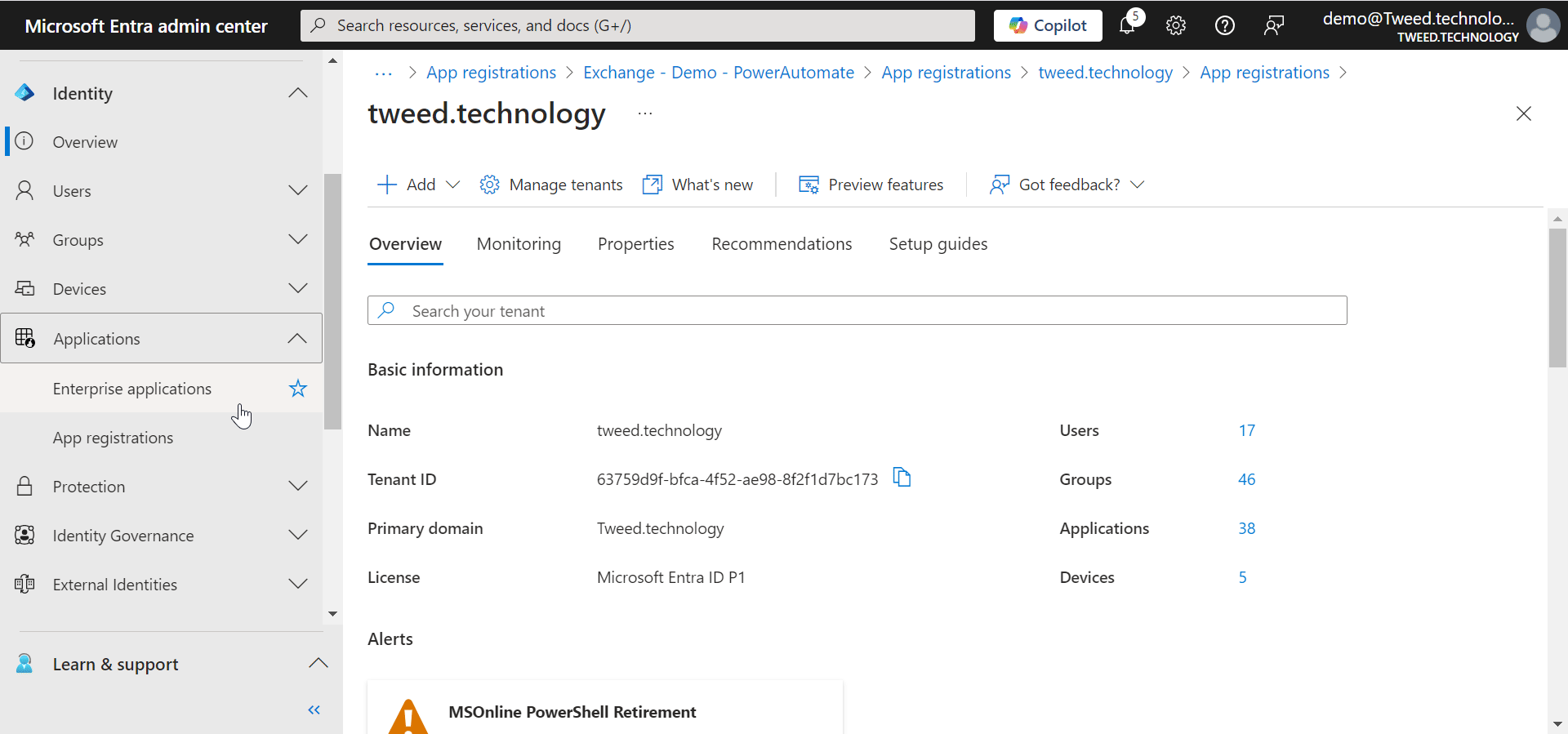

When you are on the Entra Overview page, open up Identity.
Then navigate to Applications in the left hand menu and then open up App Registrations.
From there select New Registration.
A new screen will open, give your new app registration a name and then click next.

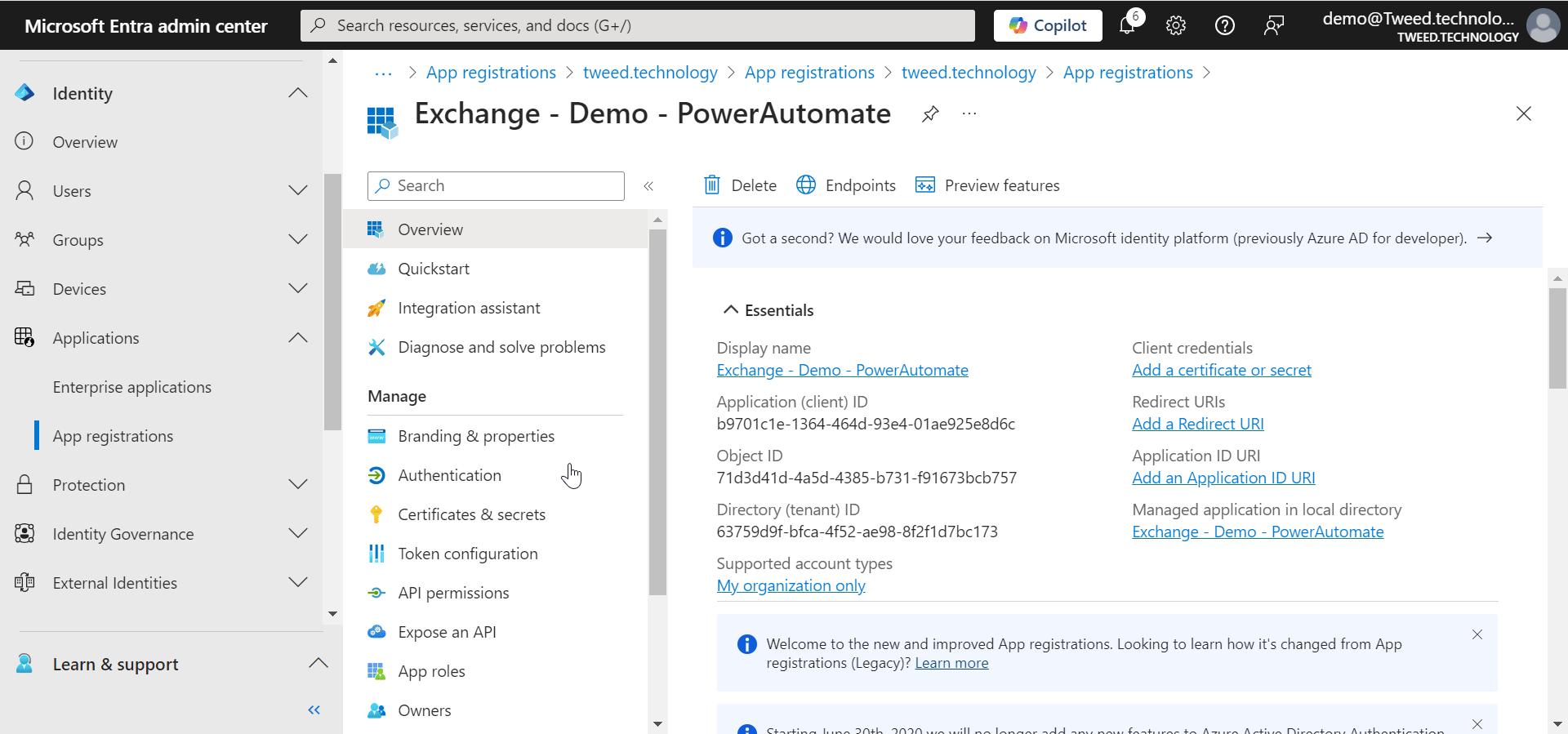

Step 3 - Add API permission

We then need to give our App Registration an API Permission, This will be the permission used to talk to Exchange Online.

In the left hand menu click on API Permission.
Click on Add permission.
A window will then open, select Application Permission.
Then using the search box type in mail.send.
The list will then filter, as it does open up the Mail option and select mail.send.

NOTE: Yes this permission lets your send emails as anyone, however we will restrict this later. DO NOT MISS USE IT IS POSSIBLE TO TRACK WHERE AN EMAIL CAME FROM.

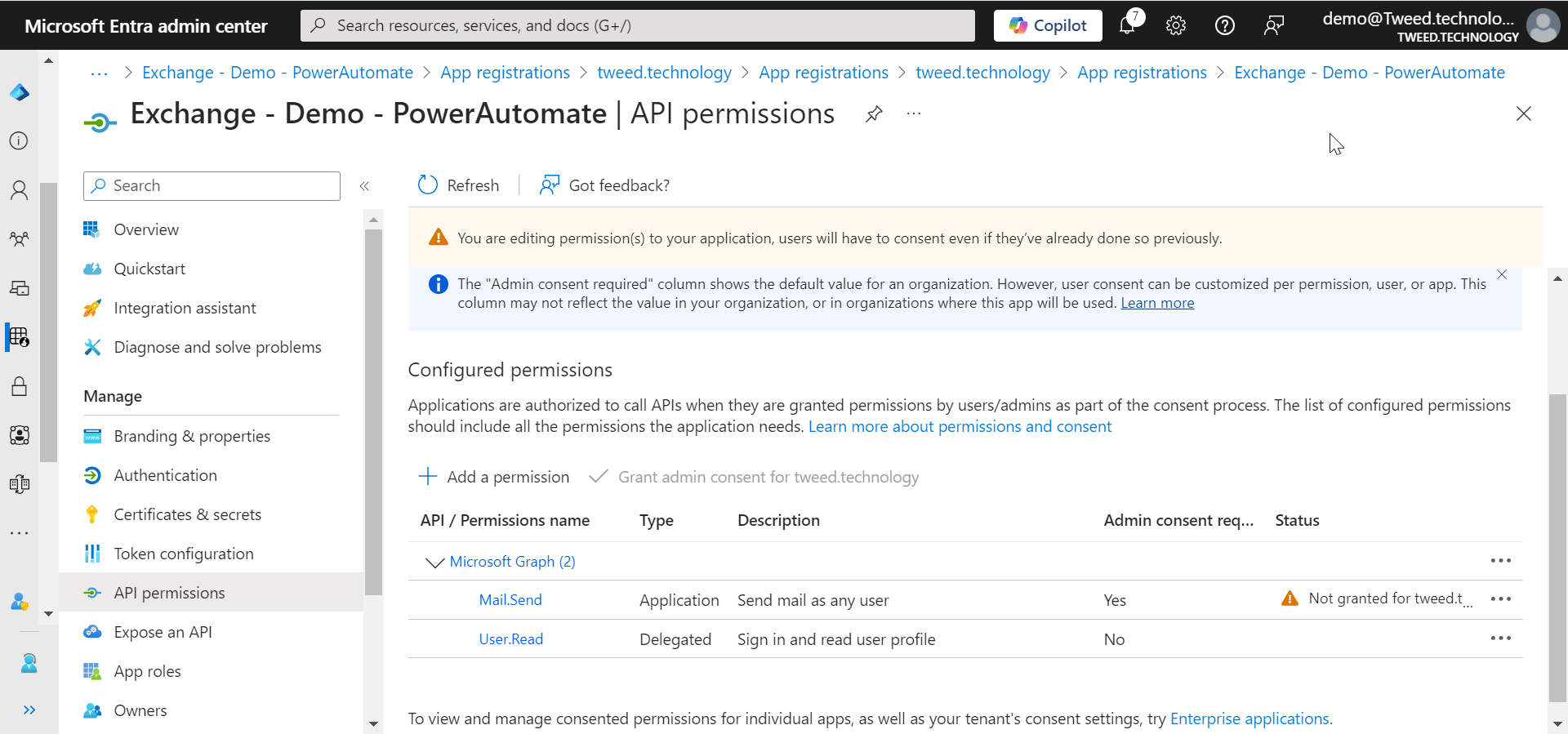

You will notice that the Grant admin consent is grayed out
This is Because we currently lack administrative roles for our account. For this next step you will need a Global Admin.
Ask a Global administrator to grant admin consent for you

Limiting application permissions in Exchange

Our next step is to limit what permissions our application will have within exchange, we have already said it will have mail.send however without further limitation that ill allow the application to send emails from any users email account.

This Stage will need to be done by an Exchange Online Administrator.

Further reading: Further information of these next steps can be found here.

Step 1 - Set up a Mail Enabled Security Group

When we tell exchange that we want to restrict access in some way for an application registration, we need to first create a Mail-enabled Security group.

There are a few ways to do this, however today we are going to do it from the Microsoft 365 Admin center.

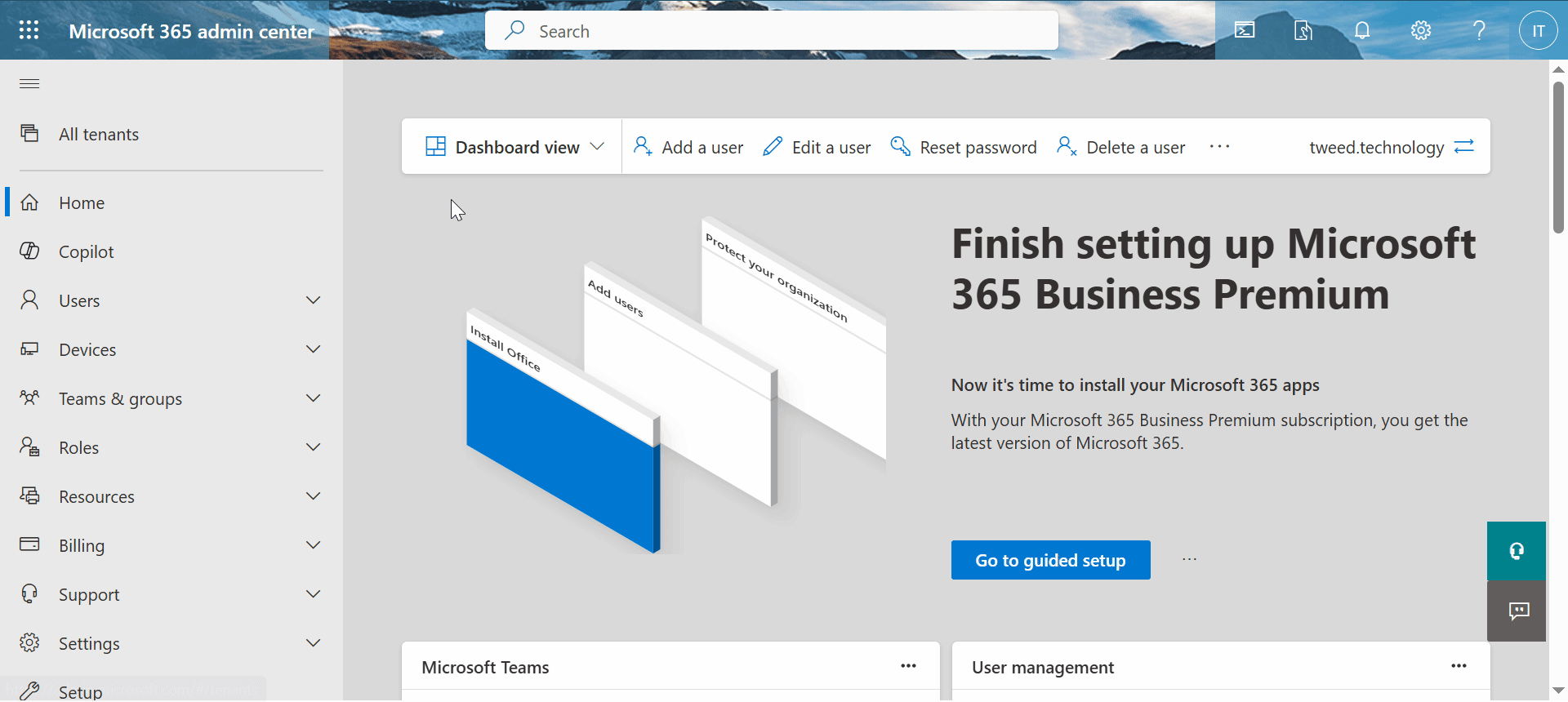

Go to Microsoft 365 Admin center
Then open up Teams and Groups.
Select ‘Security’ from the menu.
Click on Add new security group.

Step 2 - Access PowerShell

For this next step we are going to use some Powershell. You can do this from a location of your choice however today we are going to demo it from Cloud Shell.

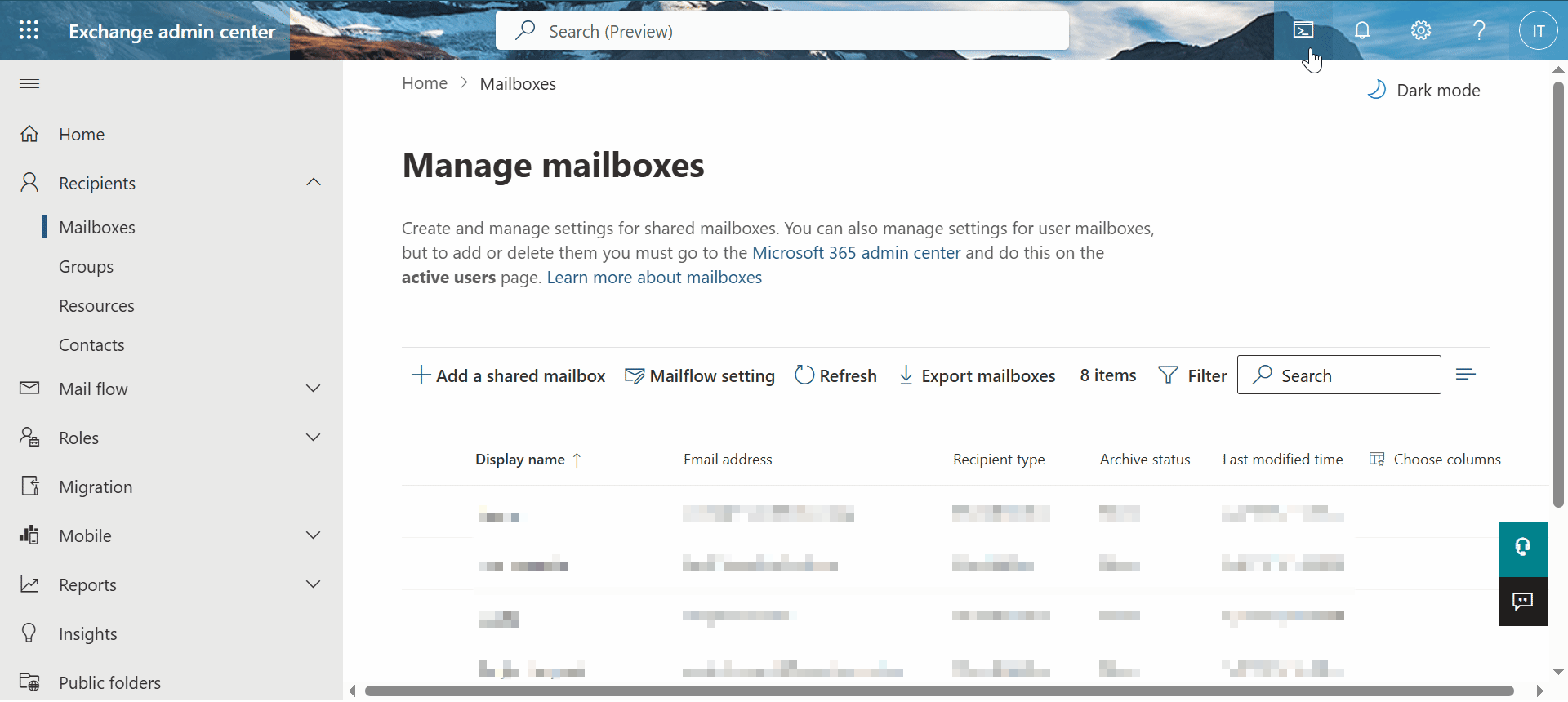

Navigate to Exchange Online https://admin.cloud.microsoft/exchange#/homepage.
Click on the Cloud Shell button in the top right hand corner.

Step 3 - Create Application Access Policy

Next we are going to create an application access policy using both the Application ID and the Mail-enabled security group we created in earlier steps.

Lets look at our command. New-ApplicationAccessPolicy -AppId b9701c1e-1364-464d-93e4-01ae925e8d6c -PolicyScopeGroupId PowerAutomateTest@Tweed.technology -AccessRight RestrictAccess -Description "Restrict this app to members of PowerAutomateTest@Tweed.technology"
Breaking this down we have
1. Command: New-ApplicationAccessPolicy - This cmdlet creates a new application access policy in Microsoft 365.
2. Parameter: -AppId b9701c1e-1364-464d-93e4-01ae925e8d6c - Specifies the unique identifier (AppId) of the application for which the policy is being created.
3. Parameter: -PolicyScopeGroupId PowerAutomateTest@Tweed.technology - Defines the scope of the policy by specifying the group ID (email address) that the policy will apply to.
4. Parameter: -AccessRight RestrictAccess - Sets the access right for the policy. In this case, it restricts access.
5. Parameter: -Description "Restrict this app to members of PowerAutomateTest@Tweed.technology" - Provides a description for the policy, explaining its purpose.
Lets try running the command in PowerShell using the CloudShell.

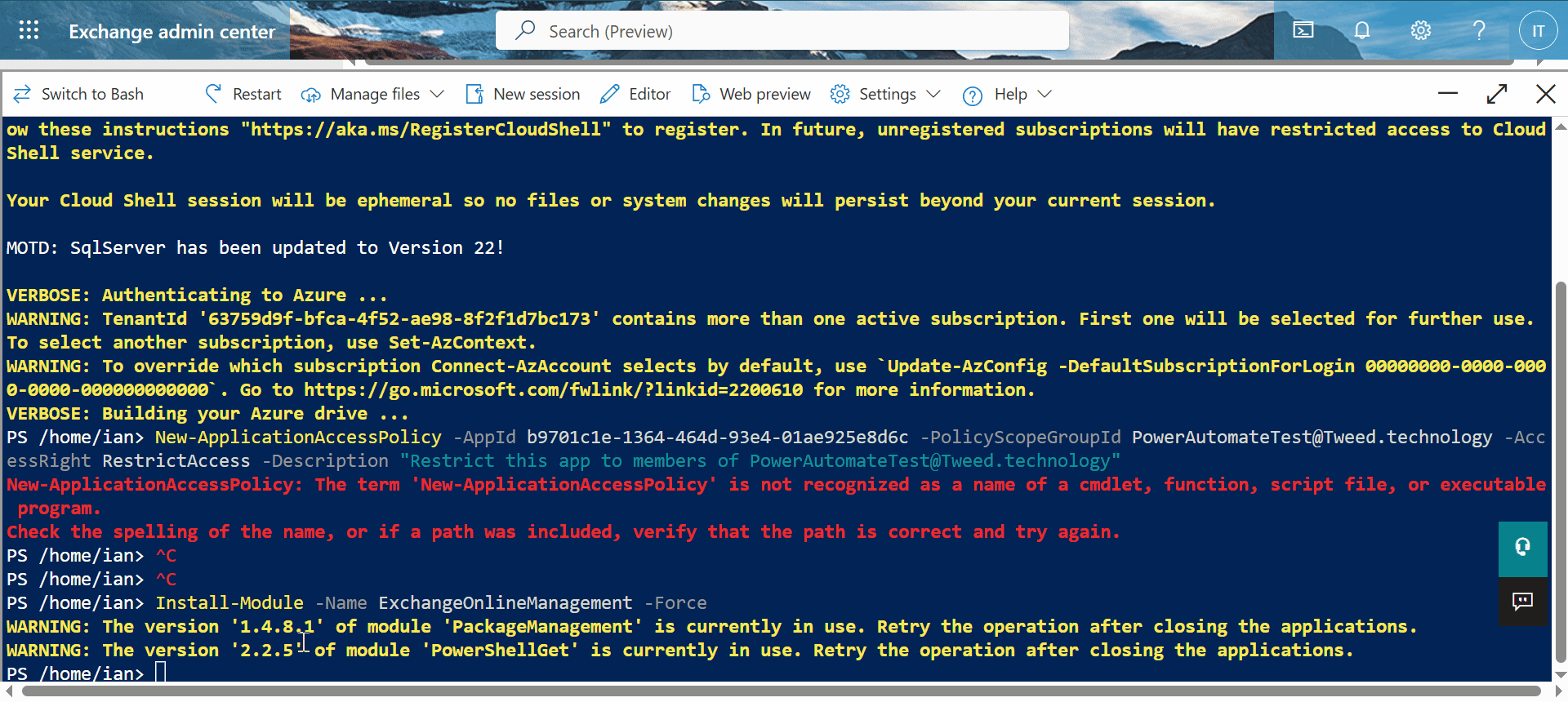

Oh no, it doesn’t work. You could be forgiven for thinking that given we have opened this up from the Exchange Admin center that we would indeed already have access to and be connected to exchange online within the CloudShell but unfortunately we are not.
Therefore before we go any further we need to install the Exchange Online Management Module. Install-Module -Name ExchangeOnlineManagement -Force.

Step 4 - Import and Connect

Our next step, is really to go back a stage and import and connect to Exchange Online.

To do this we need to:

First we need to import the module we have just installed, to do this we run this command Import-Module ExchangeOnlineManagement
Next we need to connect to exchange, within the CloudShell the easiest way to to this is by using device login. Run this command Connect-ExchangeOnline -Device.
This will give us a URL and a device code in order to log in to Exchange Online.
Next lets try re-running our command to create the new policy New-ApplicationAccessPolicy -AppId b9701c1e-1364-464d-93e4-01ae925e8d6c -PolicyScopeGroupId PowerAutomateTest@Tweed.technology -AccessRight RestrictAccess -Description "Restrict this app to members of PowerAutomateTest@Tweed.technology"
This time we get the response

ScopeName        : Power Automate Test
ScopeIdentity    : Power Automate Test20250209121934
Identity         : 63759d9f-bfca-4f52-ae98-8f2f1d7bc173\b9701c1e-1364-464d-93e4-01ae925e8d6c:S-1-5-21-3787302941-3231517822-469913106-31437838;9
                   98e9d79-817d-41c9-87d8-d9c07f27f4b2
AppId            : b9701c1e-1364-464d-93e4-01ae925e8d6c
ScopeIdentityRaw : S-1-5-21-3787302941-3231517822-469913106-31437838;998e9d79-817d-41c9-87d8-d9c07f27f4b2
Description      : Restrict this app to members of PowerAutomateTest@Tweed.technology
AccessRight      : RestrictAccess
ShardType        : All
IsValid          : True
ObjectState      : Unchanged

Step 5 - Let’s test it in PowerShell

We can now test using PowerShell, to see if it’s applied correctly.

To do this:

We are going to run the following command Test-ApplicationAccessPolicy -Identity testABC@Tweed.technology -AppId b9701c1e-1364-464d-93e4-01ae925e8d6c
If we break down this command:
1. Command: Test-ApplicationAccessPolicy - This cmdlet tests an application access policy in Microsoft 365 to verify if a user has access.
2. Parameter: -Identity testABC@Tweed.technology - Specifies the identity (email address) of the user to test against the application access policy.
3. Parameter: -AppId b9701c1e-1364-464d-93e4-01ae925e8d6c - Specifies the unique identifier (AppId) of the application for which the policy is being tested.

Running the command we get the following response:

AppId             : b9701c1e-1364-464d-93e4-01ae925e8d6c
Mailbox           : testABC
MailboxId         : 75283b3b-609a-4c1c-b8b8-baa1342fdfa6
MailboxSid        : S-1-5-21-3787302941-3231517822-469913106-31499791
AccessCheckResult : Granted

Let’s test this against a different email address that is not within the Mail-enabled security group by running Test-ApplicationAccessPolicy -Identity demo@Tweed.technology -AppId b9701c1e-1364-464d-93e4-01ae925e8d6c.

AppId             : b9701c1e-1364-464d-93e4-01ae925e8d6c
Mailbox           : demo
MailboxId         : d2ca4050-f8a9-4986-b998-387603b466b6
MailboxSid        : S-1-5-21-3787302941-3231517822-469913106-19344836
AccessCheckResult : Denied

We can see it has being Denied which is the response we expected.

Download and testing the connector

Step 1 - Find custom connectors

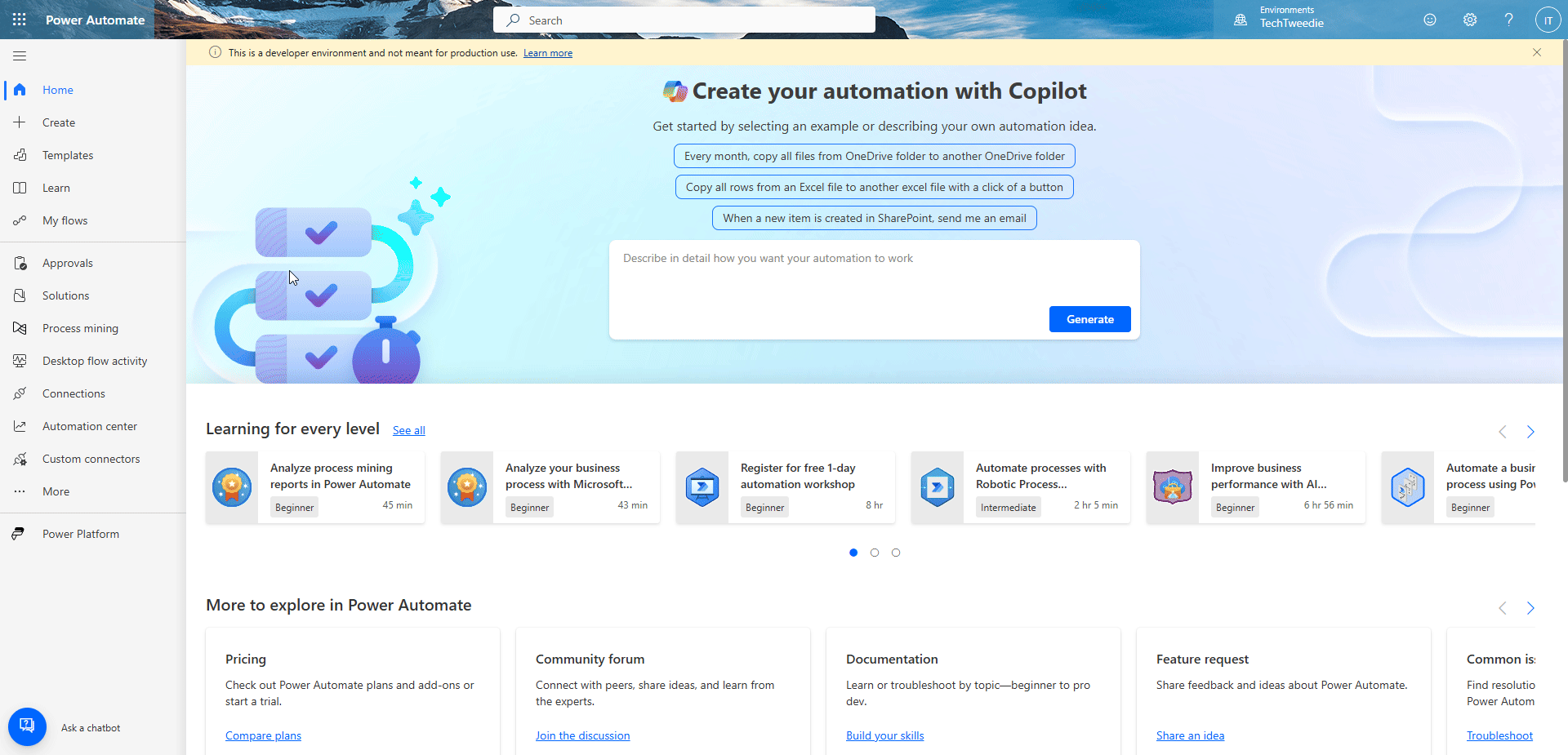

First we need to find custom connectors in Power Automate.

To do this we need to:

Navigate to https://make.powerautomate.com/
Change our environment should you need to.
Then in the left hand menu, navigate to More and then Discover all, and then locate Custom connectors.

Step 2 - Create a new connector

Click on New custom connector.
Then click on Import an OpenAPI from URL.
Then enter in the connector name Send email using Graph.
Then enter in the URL https://raw.githubusercontent.com/itweedie/PowerPlatform-Send-Emails-from-Power-Automate-without-a-Service-Account/refs/heads/main/connector/shared_mightora-5fsend-20mail-20with-20graph-5fe07b0f04a8b0d4c3/apiDefinition.swagger.json

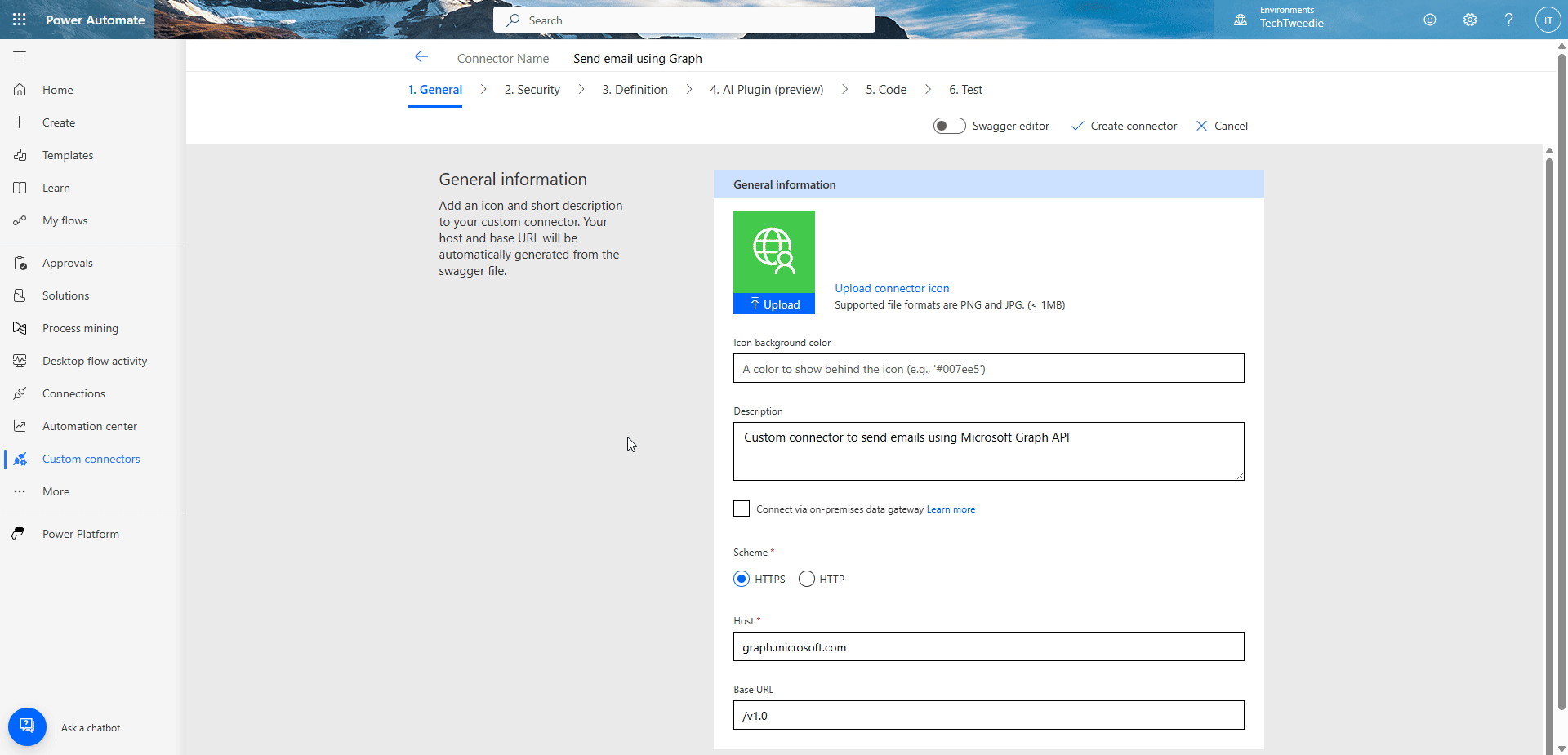

Step 3 - Configure your connector

Click on to the Security tab.
Make sure we are using OAuth 2.0
Make sure the Identity Provider is set to Azure Active Directory and that Enable Service Principle support is ticked.
Click in to Client ID
Navigate back to Entra and locate your App Registration.
Copy the Client ID and paste it in to the Client ID box on the Custom Connector.
Go back to the App Registration in Entra, and click on Certificates & secrets, then click on New client secret. Choose a name and a reasonable date for expiry that fits within your organisations policy’s.
Copy the Secret value, NOT Secret ID, and paste it in to your connector. You will need your secret ID one more time so keep the Entra page open with it on.
Enter in Resource URL as https://graph.microsoft.com.
Click Create

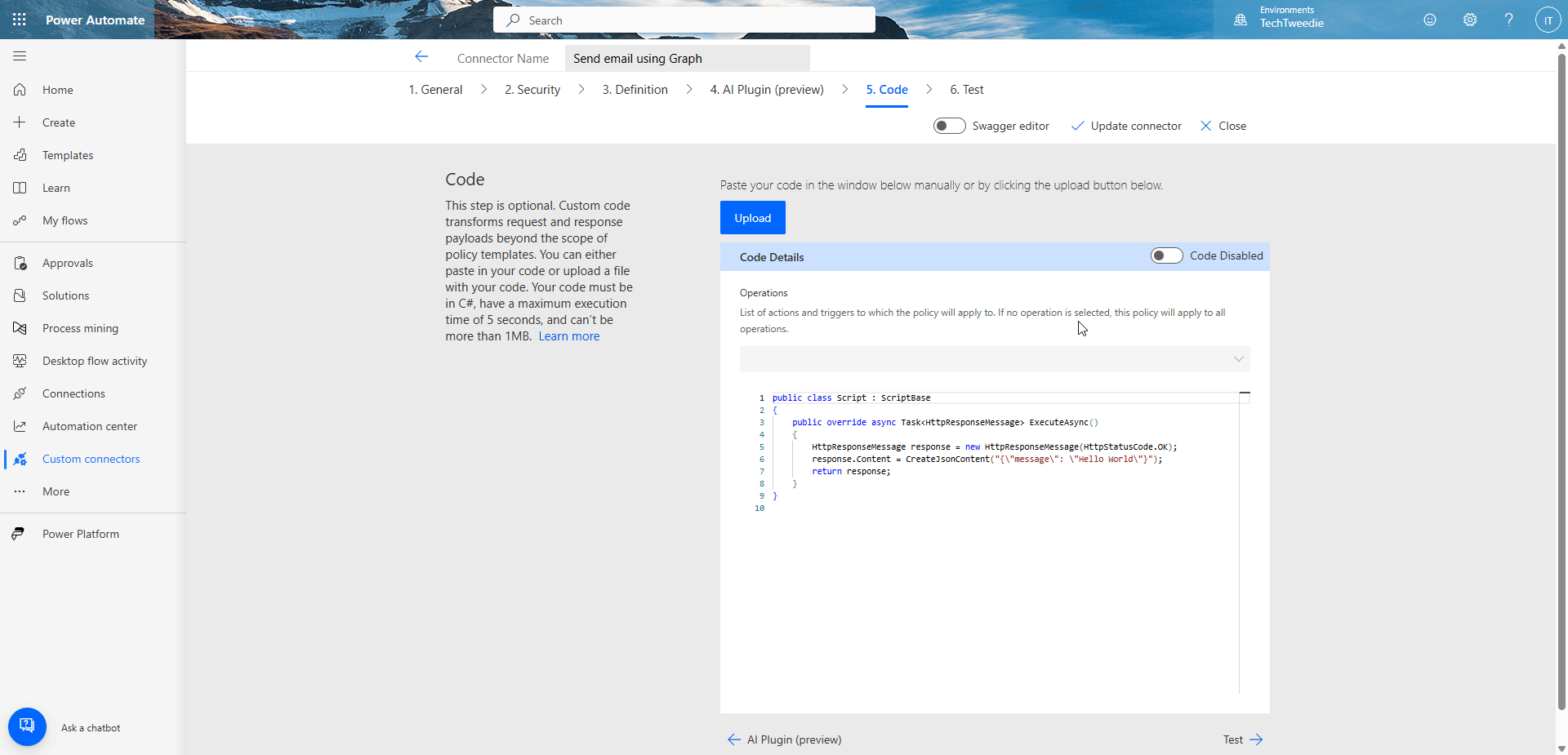

Step 4 - Add C# to process the attachment

In order to be able to send attachments we need to add some C# to our connector. If you are not going to be sending attachments you can skip this step.

To do this you need to:

Click on to Code
Click to enable code.
Copy and pase the below code in to the code box.

public class Script : ScriptBase
{
    public override async Task<HttpResponseMessage> ExecuteAsync()
    {
        // Read the request content as a string
        var requestContentAsString = await this.Context.Request.Content.ReadAsStringAsync().ConfigureAwait(false);

        // Parse the request content string into a JSON object
        var requestContentAsJson = JObject.Parse(requestContentAsString);

        // Modify the attachments array if it exists
        List<string> attachmentFileTypes = new List<string>();

        if (requestContentAsJson["message"]?["attachments"] is JArray attachments)
        {
            foreach (var attachment in attachments)
            {
                // Add the @odata.type element
                attachment["@odata.type"] = "#microsoft.graph.fileAttachment";
            }
        }

        // Set the modified JSON back to the request content
        this.Context.Request.Content = CreateJsonContent(requestContentAsJson.ToString());

        // Send the API request and get the response
        var response = await this.Context.SendAsync(this.Context.Request, this.CancellationToken).ConfigureAwait(continueOnCapturedContext: false);

        // Read the response content as a string
        var responseContentAsString = await response.Content.ReadAsStringAsync().ConfigureAwait(false);

        // Check if the response content is empty or null
        if (string.IsNullOrEmpty(responseContentAsString))
        {
            // Set a default message if there is no response from the endpoint
            responseContentAsString = "{\"message\": \"No response from the endpoint\"}";
        }
        else
        {
            try
            {
                // Try to parse the response content string into a JSON object
                var responseContentAsJson = JObject.Parse(responseContentAsString);

                // Convert the JSON object back to a string
                responseContentAsString = responseContentAsJson.ToString();
            }
            catch (JsonReaderException)
            {
                // If parsing fails, set an error message with the invalid JSON response
                responseContentAsString = $"{{\"message\": \"Invalid JSON response\", \"response\": \"{responseContentAsString}\"}}";
            }
        }

        // Make a custom HTTP GET call to the developer messaging API
        string developerMessage = "Failed to get updated developer message";
        try
        {
            var request = (HttpWebRequest)WebRequest.Create("https://developer-message.mightora.io/api/HttpTrigger?appname=send-email-with-graph");
            request.Method = "GET";

            using (var developerResponse = (HttpWebResponse)request.GetResponse())
            {
                using (var streamReader = new StreamReader(developerResponse.GetResponseStream()))
                {
                    var developerResponseContent = streamReader.ReadToEnd();
                    var developerResponseJson = JObject.Parse(developerResponseContent);
                    developerMessage = developerResponseJson["message"]?.ToString() ?? developerMessage;
                }
            }
        }
        catch
        {
            // If the GET request fails, developerMessage remains as the default failure message
        }

        // Create a JSON object to include the original request, the response content, and the developer message
        var finalResponseContent = new JObject
        {
            ["version"] = "1.2.0", // Add version number here
            ["responseContent"] = JObject.Parse(responseContentAsString),
            ["developerMessage"] = developerMessage
        };

        // Set the response content back to the JSON string
        response.Content = CreateJsonContent(finalResponseContent.ToString());

        // Return the response
        return response;
    }

    private bool IsBinary(string content)
    {
        // Check if the content contains non-printable characters
        foreach (char c in content)
        {
            if (char.IsControl(c) && c != '\r' && c != '\n' && c != '\t')
            {
                return true;
            }
        }
        return false;
    }
}

Step 5 - Add your first connection

Click on to Test.
Then click on to New connection.
You should then get a screen which lets your choose Service Principle, if you don’t repeat step 3.
Then click Create Connection.
Enter in your Secret (we do this first as we already have the page open from Step 3).
Then enter in your Client ID and Tenant ID.
Then click Create Connection.

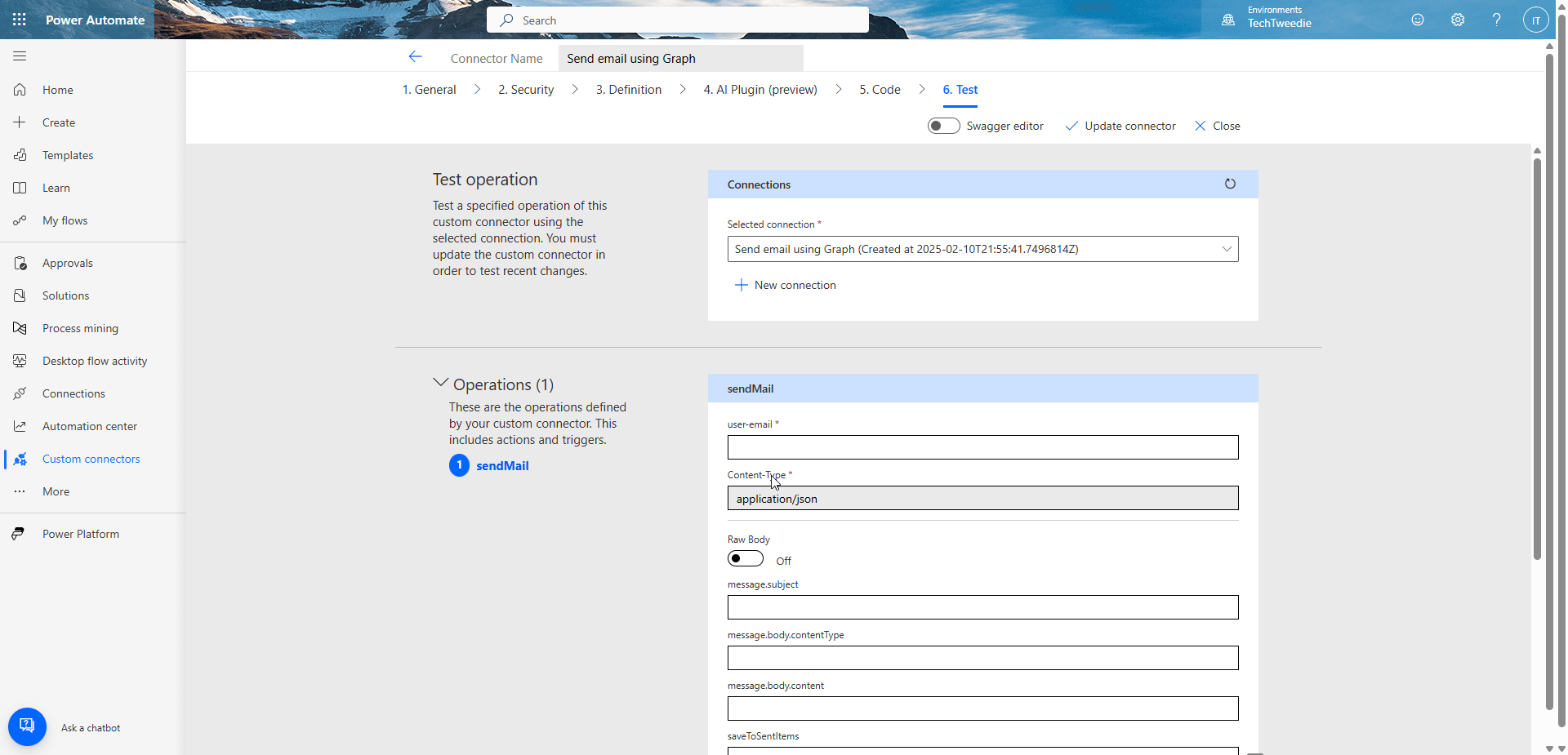

Step 6 - Test

On the Test screen scroll down to Operations.
Enter in the following:

user-email: An email address you placed in the mail enabled security group earlier
message.subject: test message
message.body.contentType: HTML
message.body.content: test
saveToSentItems: true
emailAddress.address (note first one only): An email address you would like to send to

Then press Test operation
Scroll down to Response and you should get a 202.
Test and make sure the email comes through.

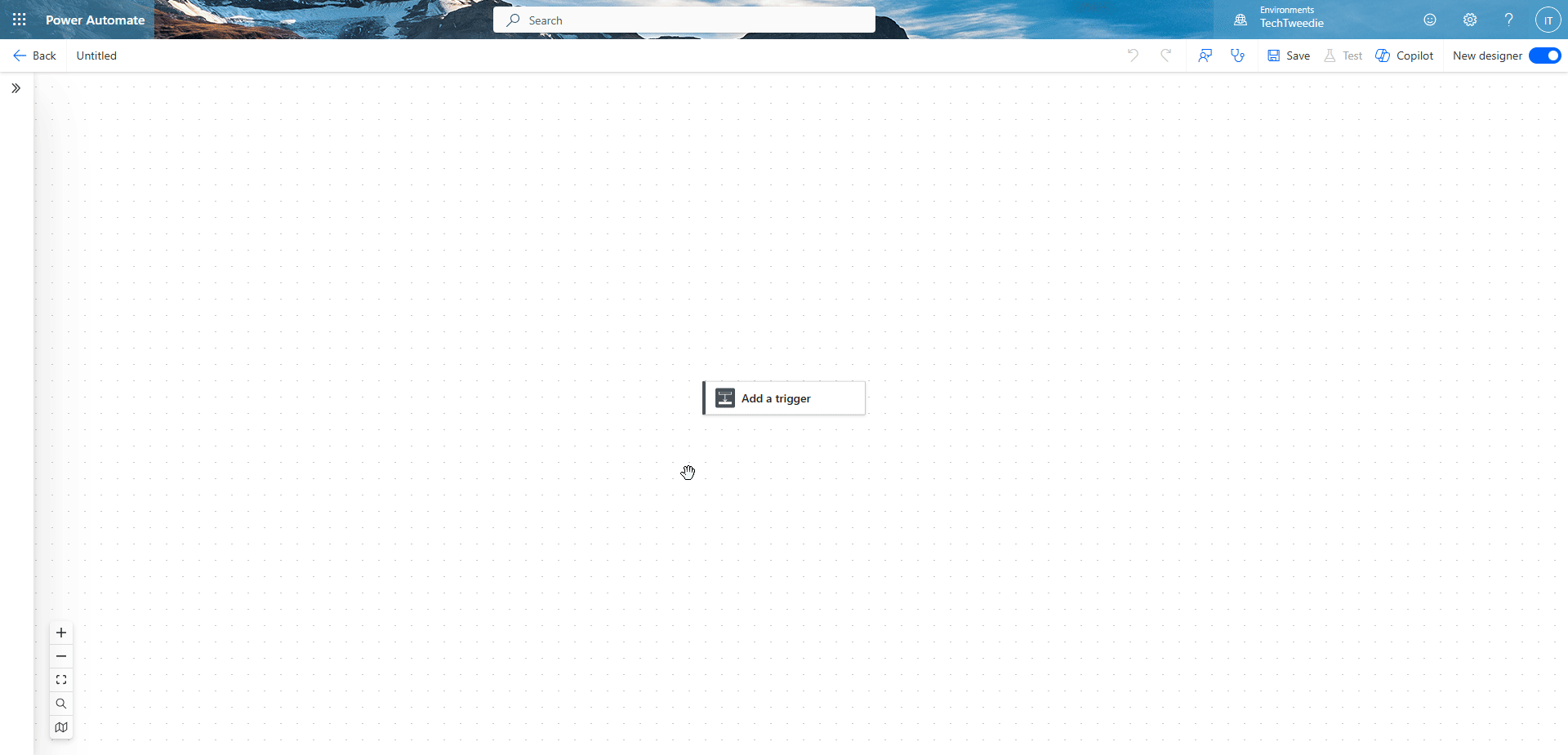

Step 7 - Lets try it in a Flow

Click on My flows
Create a new flow.
Add a trigger.
Add a new step.
From Connector type choose Custom.
Then select Send email using Graph from the list.
Fill out the details for the connector that you want to use.
Test and make sure the email comes through.

Sending attachments

If you are planing to use this connector to send attachments, if the file is binary you will need to convert it to base64.

Conclusion: Secure, Scalable Email Sending from Power Automate

By following this guide, you’ve successfully set up a secure, scalable way to send emails from Power Automate—without relying on service accounts, password resets, or Conditional Access headaches.

With your App Registration configured, permissions locked down, and custom connector deployed, you now have a robust method to send emails directly through Exchange Online—while ensuring access is tightly controlled.

Key Takeaways:

✅ No Service Account Required – Uses an App Registration instead.
✅ Secure and Controlled – Email sending is restricted to specific mailboxes.
✅ Fully Automated – No need to log in or manage passwords.
✅ Scalable and Future-Proof – Works seamlessly across flows, reducing admin overhead.

Now that your setup is complete, you can start integrating email automation into your Power Automate workflows with confidence. Give it a try, experiment with different use cases, and let me know how it works for you!

🚀 Happy automating! 🚀
